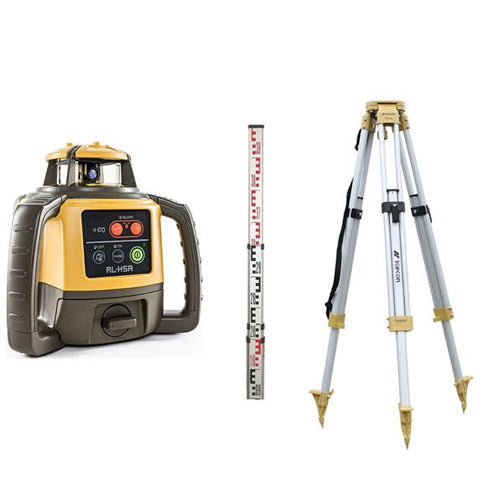

Topcon RL-H5A Laser Level c/w Tripod & Staff (800M)
Now: €1,049.94Inc. VAT
Now: €1,049.94Inc. VAT
The Topcon RL-H5A Horizontal Self-Leveling Rotary Laser is a multi-purpose laser ideal for grading, excavating, site preparation, concrete works, and other general construction projects. When used with a receiver, it offers a long operating range up to 2,600 feet in diameter. This laser level also offers an accuracy of up to 1/16"" at 100 feet and is self-leveling within 5 degrees.
For added precision and accuracy, the RL-H5A features a manual single-axis leveling mode and rotates 600 times per minute. This horizontal rotating laser is simple to use, intuitive, and re-levels itself immediately if the device is disturbed on the job.
With an IP66 rating, the Topcon RL-H5A is protected from dust and low-pressure water jets. This rotary laser uses either a dry cell or a rechargeable battery that can power the device up to 100 hours, making it the great companion for a long day at work.
FEATURES:
- Range up to 2,600 feet with receiver
- Accuracy 1/16"" at 100 feet
- Manual single-axis leveling
- Self-leveling within 5 degrees
- Rotation speed: 600 RPM
- Re-levels immediately if disturbed
- IP66 dustproof and water resistant
- Option for dry cell or rechargeable battery
- Up to 100 hours battery life
- Weighs 5.07 lbs
- Size: 6.77"" L x 8.31"" W x 8.07"" H
- Multi-purpose laser
SPECIFICATIONS:
- Color Red
- Range
- Interior Up to 2,600 feet (800 m)
- Exterior Up to 2,600 feet (800 m)
- Self Leveling ±5 degrees
- Battery Life with Rechargeable Battery Pack Up to 60 hours
- Battery Life with Alkaline Batteries Up to 100 hours
- Power Source D alkaline or rechargeable battery pack
- Battery Life Alert No
- Protection Class IP66 dustproof and water resistant
- Tripod Adapter (Center Screw Thread) N/A
- Removable Laser Cage (for exact beam spotting) N/A
- Adjustable Rotating Speed 600 RPM only
- Weight 5.07 lbs (2.3 Kg)
- Horizontal ±1/16 inch at 100 feet
- Slope Match Yes
- Grade Operation No
- Automatic Leveling Yes
- Beam Operating Modes No
- Scanning Modes No
APPLICATIONS:
- Checking/Setting Elevations No
- Transferring Points from Floor to Ceiling No
- Machine Control of Excavators, Graders, Dozers or Similar Equipment Yes
- Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.) Yes
- Short-Range Leveling for Decks, Patios & Swimming Pools No
- Installation/Leveling Interior Walls Yes
- Installation/Leveling Ceiling Grids No
- Squaring and Layout of Partitions, Walls & Tile Floors No
- Concrete Forms, Footings and Foundations Yes
- Plumb Reference No
- Checking Elevations of Sub-Base and Sub-Grade No
- Short-Run Vertical Alignment No
- Checking Building Square & Area No
- Estimating Cut & Fill No
- Matching Existing Slope & Grade Yes
- Locating Finished Floor Levels No
INCLUDES:
- Topcon RL-H5A Horizontal Self-Leveling Rotary Laser
- Receiver mounting bracket
- Hard carrying case
- LS-80L

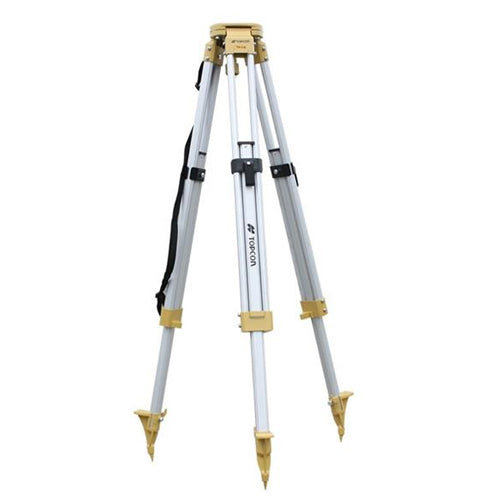

- Tripod

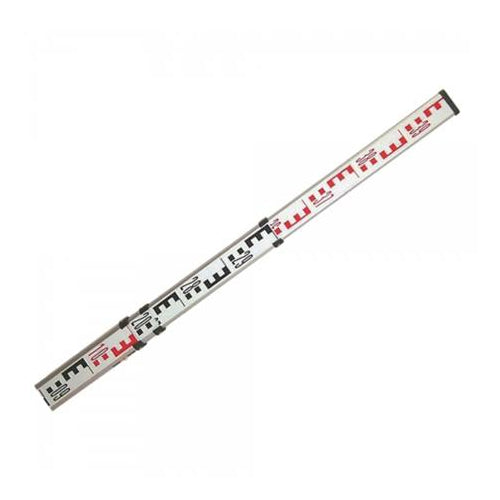

- Staff
- User manual
