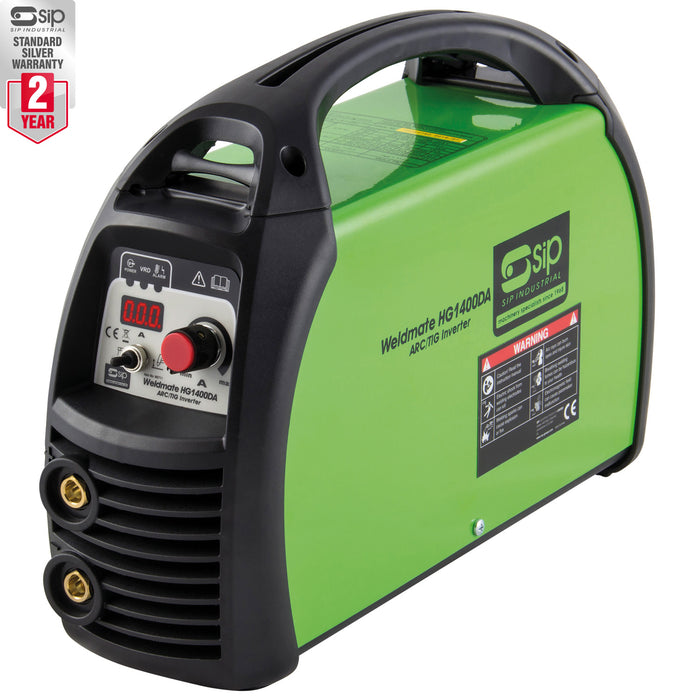

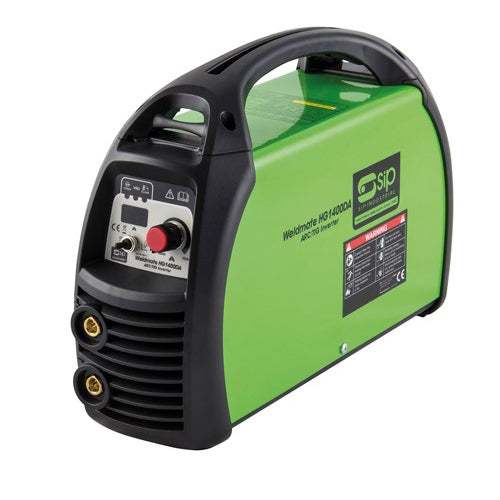

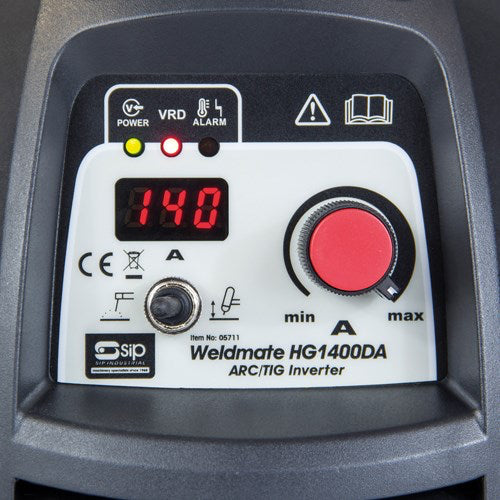

SIP 140amp HG1400DA Professional Inverter Arc Welder
SKU 05711
Original price
RRP: €379.95
Original price
€379.95
-
Original price
€379.95
Original price
€379.95
Current price
(€251.99Ex. VAT)
Now: €309.95Inc. VAT
Now: €309.95Inc. VAT
€251.99
-
€251.99
Current price
(€251.99Ex. VAT)
Now: €309.95Inc. VAT
Now: €309.95Inc. VAT
The SIP HG1401DA ARC Inverter Welder is a powerful multi-functional inverter with a lightweight, compact design for portability, and is generator-friendly meaning it is ideal for a variety of applications and environments without mains electricity supplies.

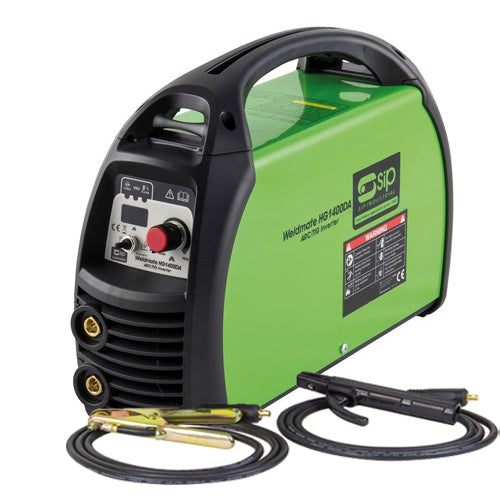

Supplied with electrode holder and cable, plus Earth cable and clamp accessories.
- Ø 1.6mm to Ø 3.2mm electrode diameter
- 20A to 140A output current; 140A @ 60% duty cycle
- Lightweight and compact design for simple portability
- Lift-TIG start function and anti-stick circuitry
- Fitted with a reliable Voltage Reduction Device (VRD)
- Generator-friendly for suitability in all environments
- Thermal overload protection for added safety
- Equipped with high-quality dinse sockets
- SIP 2-Year Standard Silver Warranty
Note: VRD (Voltage Reduction Device) - Can be manually switched off.
Please Note: Tig Leads not included! Click Here for Tig Torch.
Specification:
| ITEM NO. | 05711 |
| Input Supply: | 230v (13A) |
| Output Current: | 20A - 140A |
| Output Voltage: | 20.8v - 25.6v (ARC) 10.8v - 15.6v (TIG) |
| Duty Cycle: | 20°C: 140A @ 60% 40°C: 140A @ 20% |
| Electrode Diameter: | Ø 1.6mm - 3.2mm |
| Welding Thickness: | 1.5mm - 7mm |
| Open Circuit Voltage: | 69v |
| Power Factor: | 0.75 |
| Efficiency Level: | 85% |
| Protection Level: | IP21S |
| Insulation Class: | Class H |
| Net Weight: | 4.80kg |
| Gross Weight: | 6.80kg |
| Product Dimensions: | |
| Packaged Dimensions: | 310(H) x 436(W) x 211mm(D) |
2 Year Warranty!
These welding current values are for E6013 electrodes, for other types of electrode consult their data sheet.
| Electrode Size (mm) | Material Thickness (mm) | Welding Current (A) |
| 1.6mm | 1 - 1.6mm | 25 - 40amp |
| 2mm | 1.6 - 2.6mm | 40 - 70amp |
| 2.5mm | 2.6 - 4mm | 60 - 100amp |
| 3.25mm | 3 - 5mm | 80 - 130amp |
| 4mm | 5 - 7mm | 130 - 170amp |
