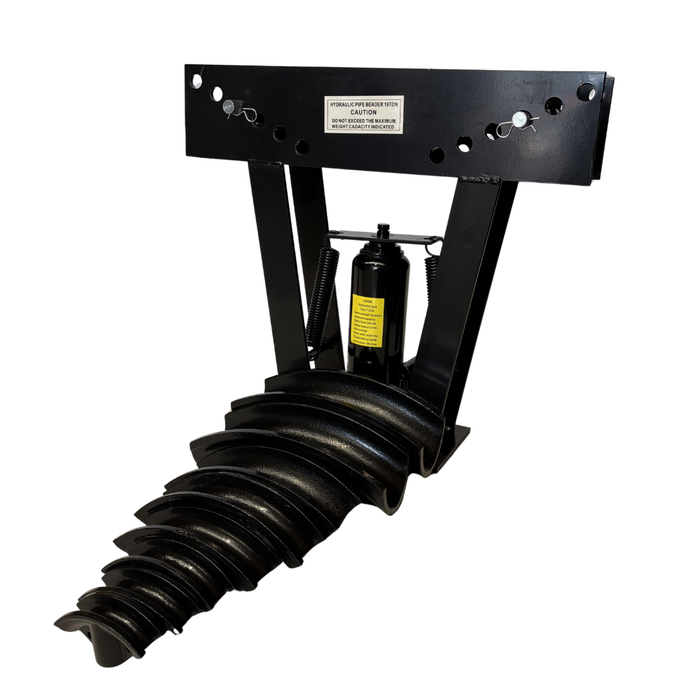

16 Ton Heavy Duty Hydraulic Pipe Bender (1/2'' - 3'')

SKU LD-B02161
Original price RRP: €319.95
Original price €319.95 - Original price €319.95
Original price €319.95
Current price (€227.60Ex. VAT)
Now: €279.95Inc. VAT
€227.60 - €227.60
Current price (€227.60Ex. VAT)
Now: €279.95Inc. VAT

This 16 Ton Pipe Bender is ideal for tough daily use and delivers 16 tons of pressure when bending pipes and tubes. A professional, portable and easy to use machine which is suitable for both pipe fitting and general fabrication. Operates in vertical positions and can bend up to 180 degrees and bends up to 3" pipe.

The frame is fully welded and bolted is a heavy duty 16 ton hydraulic ram. The dimensions of the pipe bender are 25'' (635mm) wide, 23'' (575mm) high and the distance between the dies is 4 3/4'' (120mm). The precision cast dies that are supplied are 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'' 2'', 2 1/2'' and 3''.

Please note that this is not suitable for thin wall pipes, e.g. copper

Bends up to 3'' Pipe!

Specification:

  • 16 Ton Pipe Bender
  • Formers Supplied : 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2" & 3"
  • Precision Cast Dies
  • Floor or Bench Mount
  • Vertical Operation
  • Fully Welded Frame
  • External Return Springs
  • Dimensions: 25'' Wide (635mm)
  • 23'' High (575mm)
  • Distance between Frame: 4 3/4'' (120mm)
  • Weight: 59kg


    12 Months Guarantee!
