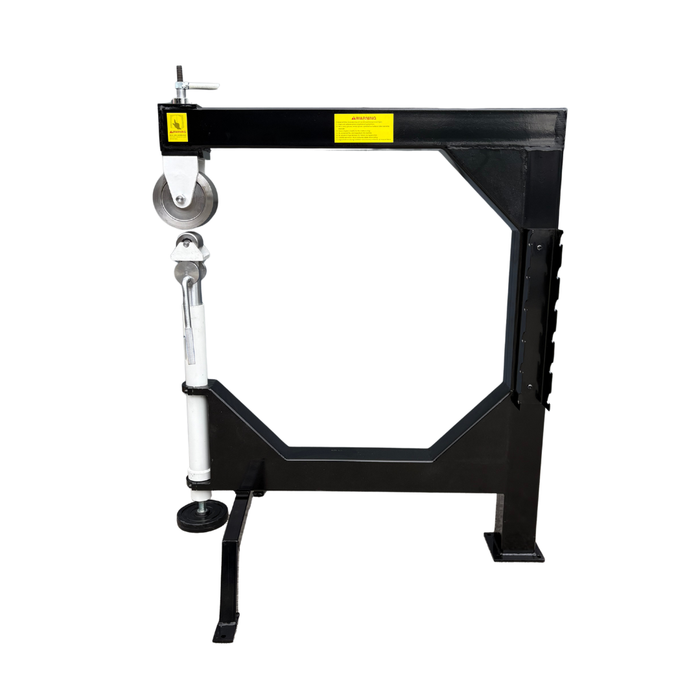

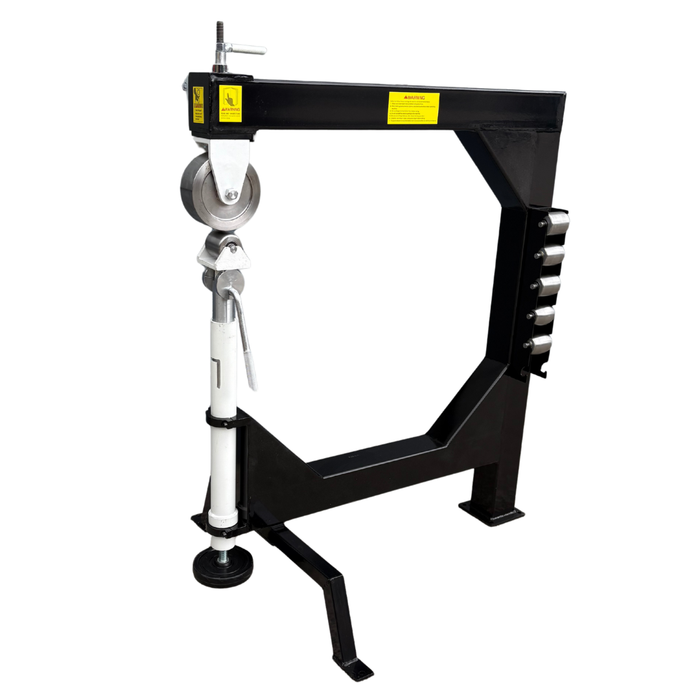

Heavy Duty Floorstading English Wheel (812mm Throat)

The Heavy Duty English Wheel is designed to allow craftsmen to form smooth curves from flat sheets of metal. They are mainly used in car, motorcycle, aviation and racing car construction or restoration where sheet metal panels need to have compound curves formed.

The operator passes the sheet metal between the anvil wheel and the rolling wheel. This process stretches the material and causes it to become thinner. As the material stretches, it forms a convex surface over the anvil wheel.

This English Wheel kit with stand is of professional quality. This English wheel has large 32" (812mm) throat capacity enable users to fabricate compound curves or large pieces. A quick-adjust lower anvil for easy levelling.

Handles sheet metal to 16 gauge, copper and aluminium to 14 gauge. The overall dimension of the English Wheel are: 53" High x 30-7/8"W x 44-1/2" D.

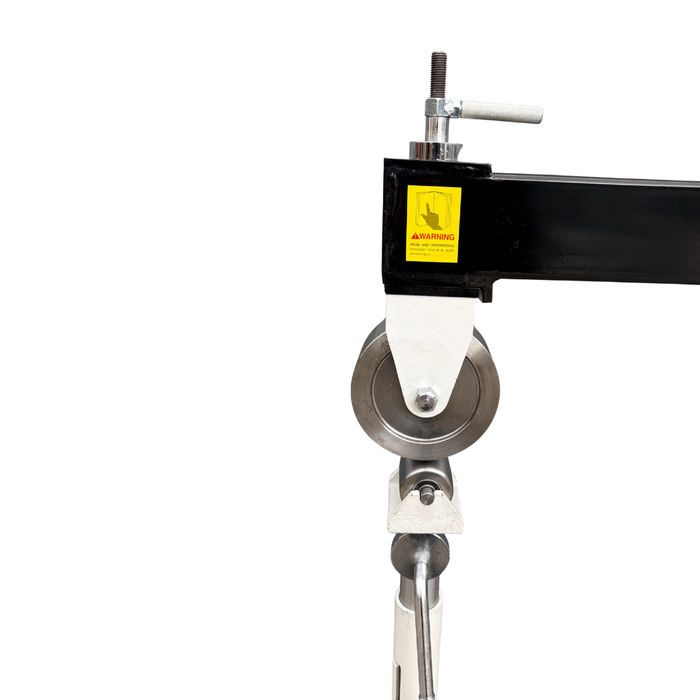

A 90 degree swivel head and an upper roller size: Flat 2-1/4" (57.15mm) Wide x 6" (150mm) Diameter.
Comes complete with 6 bottom rollers.

Specification:
