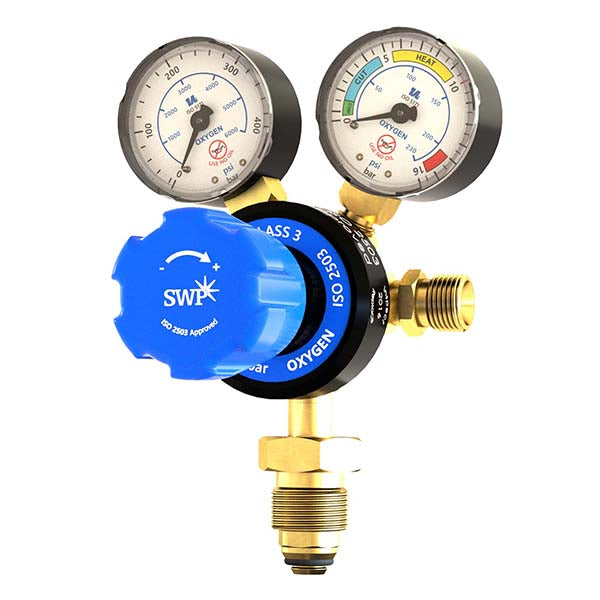

Superflow Single Stage 2G Oxygen Regulator (10 Bar)

Superflow Single Stage 2g Oxygen Regulator is a single-stage gas regulator designed for oxygen use in cutting and heating applications, available in 4 bar and 10 bar outlet pressure variants for controlled and reliable gas delivery.

• Available in 4 bar and 10 bar outlet pressure variants
• Designed for oxygen cutting and heating applications
• BS341 No.3 inlet connection for oxygen cylinders
• 6 o’clock inlet position for standard installation
• ISO 2503 compliant with full testing and inspection

• Product Type: Single Stage Gas Regulator
• Gas Type: Oxygen
• Outlet Pressure: 0 – 4 bar / 0 – 10 bar
• Maximum Inlet Pressure: 300 bar
• Inlet Connection: BS 341 No. 3
• Inlet Position: 6 o’clock
• Outlet Connection: G3/8 RH
• Outlet Position: 3 o’clock
• Gauge Type: Dual Gauge (HP & LP)
• Gauge Standard: ISO 5171
• Gauge Diameter: 50mm
• Gauge Range: Bar, kPa & psi
• Ports: G¼ (EN 837)
• Body Material: CW614N Brass
• Diaphragm Material: Elastomer
• Valve Seat: Elastomer
• Inlet Filter: Sintered Bronze
• Control Knob: ABS
• Testing: 100% Leak, Pressure, Function & Visual Inspection
